徐泽宇, 杨涛, 周小波. 基于DEM-FDM耦合的平行隧道间钢套管下旋施工影响研究[J]. 岩土工程学报. DOI: 10.11779/CJGE20231120
引用本文: 徐泽宇, 杨涛, 周小波. 基于DEM-FDM耦合的平行隧道间钢套管下旋施工影响研究[J]. 岩土工程学报. DOI: 10.11779/CJGE20231120
Study on the influence of steel casing backspin construction between parallel tunnels based on DEM-FDM coupling method[J]. Chinese Journal of Geotechnical Engineering. DOI: 10.11779/CJGE20231120
Citation: Study on the influence of steel casing backspin construction between parallel tunnels based on DEM-FDM coupling method[J]. Chinese Journal of Geotechnical Engineering. DOI: 10.11779/CJGE20231120

基于DEM-FDM耦合的平行隧道间钢套管下旋施工影响研究

Study on the influence of steel casing backspin construction between parallel tunnels based on DEM-FDM coupling method

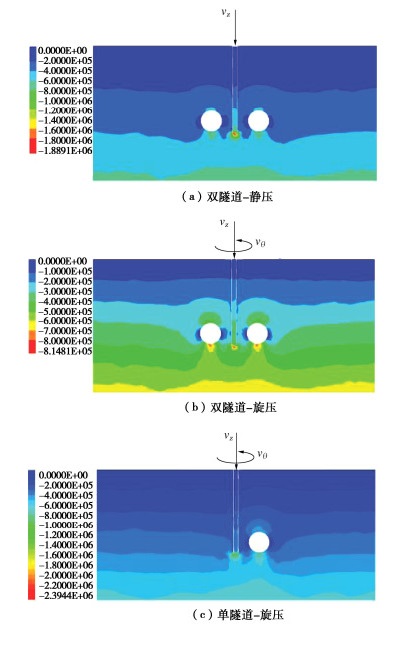

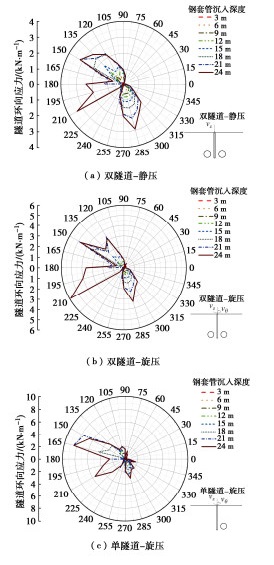

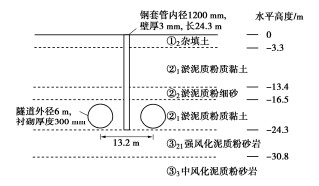

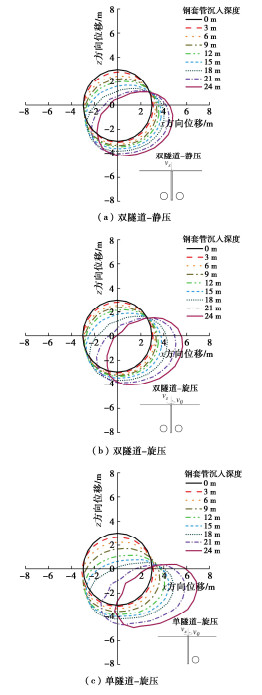

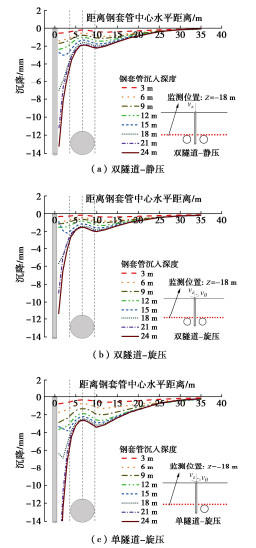

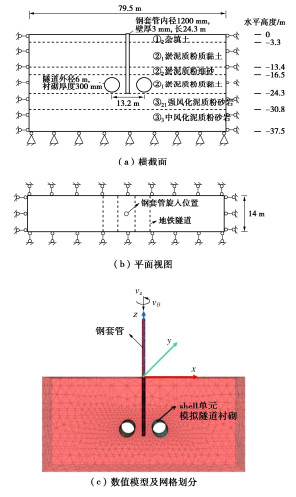

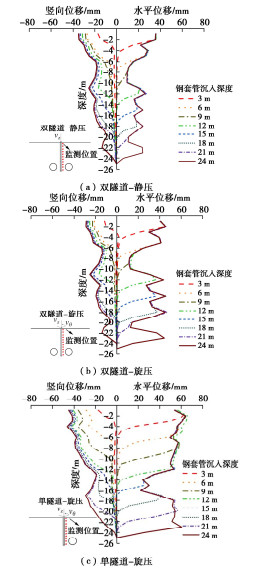

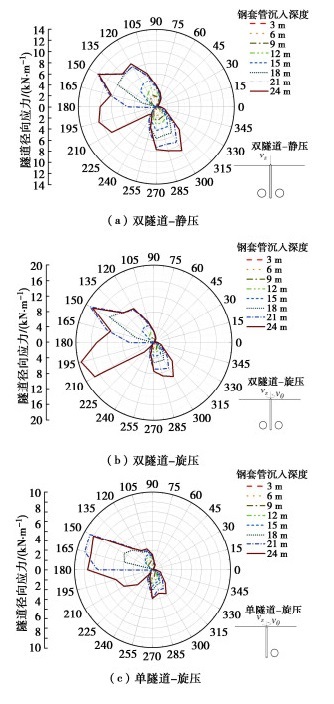

  • 摘要: 采用离散元-有限差分耦合数值方法研究平行隧道间钢套管下旋施工的影响。根据工程实例建立数值模型,并通过对比模拟值与实测值验证了数值分析方法的合理性。数值模型分析了双隧道-静压、双隧道-旋压、单隧道-旋压等三种工况下隧道和土层的受力变形特性。结果表明:钢套管旋压施工导致隧道产生的横向位移为静压施工的163.5%,单隧道工况下的隧道横、竖向变形分别较双隧道工况增加32.7%和53.4%;旋压相较于静压可以有效减小管片的收敛变形,而单隧道工况的收敛变形为双隧道工况的2倍;旋压工况下,随钢套管沉入深度增加,旋转指数先增加后减小,最大值发生在套管下沉至隧道拱顶附近,而在静压工况下需重点关注竖向旋转引起的管片错位;对于双隧道-旋压工况,应重点关注施工初期由于土体水平位移引起的地层变位和施工后期土体竖向位移可能导致的机械倾覆和钢套管的垂直度误差;隧道管片应力分布区域及特征与钢套管动态施工过程紧密相关,应在不同阶段采用相应的管片补强措施。



    Abstract: This paper adopted a discrete element method (DEM) and finite difference method (FDM) coupled numerical method to study the influence of steel casing backspin construction between parallel tunnels. A numerical model is established according to an field test, and the validation of the numerical analysis method is verified by comparing the simulated value with the measured value. The load and deformation characteristics of tunnel and soil layer under three working conditions, i.e., double tunnel - static pressure, double tunnel - spinning and single tunnel - spinning are analyzed by numerical model. The results indicate that the transverse displacement caused by steel casing spinning condition is 163.5% of the static pressure condition, and the transverse and vertical deformation of single tunnel condition is increased by 32.7% and 53.4%, respectively, compared with that of double tunnel condition. Compared with static pressure condition, spinning can effectively reduce the convergence deformation of segments, and the convergence displacement under single tunnel condition is twice that under double tunnel condition. Under spinning conditions, the rotation index increases first and then decreases with the vertical displacement of the steel casing, and the maximum value occurs near the displacement of the casing to the tunnel arch. Under static pressure conditions, the dislocation of the segment caused by vertical rotation should be focused. For the double tunnel - spinning condition, the stratum displacement caused by soil horizontal displacement in the initial stage of construction should be concerned, and the possible mechanical overturning and the vertical error of steel casing caused by soil vertical displacement in the later stage of construction should be focused. The stress distribution area and characteristics of tunnel segment are closely related to the dynamic construction process of steel casing, and corresponding segment reinforcing measures should be adopted in different stages.



/
