YAO Wei, YU Jin, ZHOU Xianqi, CHANG Fangqiang, CHANG Xu. Damage cracking and permeability characteristics of red sandstone under combined disturbance of cyclic loading and confining pressure unloading[J]. Chinese Journal of Geotechnical Engineering, 2025, 47(1): 48-56. DOI: 10.11779/CJGE20240053
Citation: YAO Wei, YU Jin, ZHOU Xianqi, CHANG Fangqiang, CHANG Xu. Damage cracking and permeability characteristics of red sandstone under combined disturbance of cyclic loading and confining pressure unloading[J]. Chinese Journal of Geotechnical Engineering, 2025, 47(1): 48-56. DOI: 10.11779/CJGE20240053
shu

Damage cracking and permeability characteristics of red sandstone under combined disturbance of cyclic loading and confining pressure unloading

  • 1.

    School of Civil Engineering and Architecture, Xiamen University of Technology, Xiamen 361024, China

  • 2.

    Fujian Research Center for Tunneling and Urban Underground Space Engineering, Huaqiao University, Xiamen 361021, China

More Information
  • Received Date: January 15, 2024
  • Available Online: July 15, 2024
    Graphical Abstract
    • Abstract

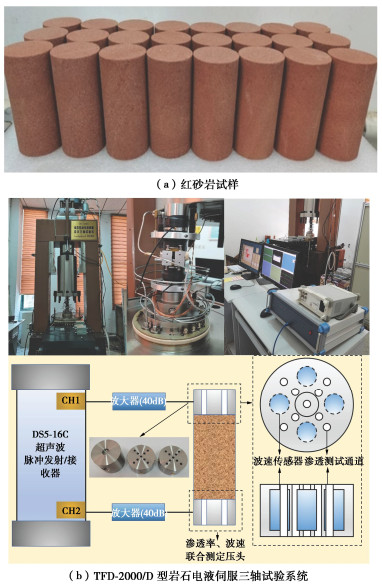

  • To explore the rules of rock mass damage and permeability evolution induced by excavation of deep earth engineering, the triaxial tests under combined disturbance of cyclic loading and confining pressure unloading for simultaneous measurement of wave velocity and permeability are conducted. The damage and permeability evolution rules of red sandstone under different conditions are studied. The results show that: (1) The rock exhibits different stress-strain curve shapes at different stages of combined disturbance, and their end shapes depend on at which stage of disturbance the rock is failed. The initial stress ratio is the main factor to determine the difficulty of rock failure induced by the combined disturbance. (2) The total peak axial strain increases with the increase of the initial stress ratio, and the proportion of axial strain of the combined disturbance is always low. The absolute value of the total peak volume strain increases first and then decreases with the increase of the initial stress ratio, and the proportion of disturbance volume strain the combined is high. (3) At the initial loading stage, the wave velocity increases, and the permeability decreases. In the combined disturbance stage, the wave velocity decreases and the permeability increases. The damage and volume strain are approximately linearly related, and both the damage and permeability show a slow and then fast growth trend with the increase of disturbance times, and the inflection point seems to be on a straight line. (4) The rock exhibits a single shear failure mode at the combined disturbance unloading confining pressure stage, and a conjugate shear failure mode at the combined disturbance cyclic loading stage. (5) The double-high condition (high initial stress ratio and high initial confining pressure) will significantly increase the risk of excavation instability and failure of rock.
    • FullText(HTML)
    • References (17)
  • [1]
    谢和平, 张茹, 张泽天, 等. 深地科学与深地工程技术探索与思考[J]. 煤炭学报, 2023, 48(11): 3959-3978.

    XIE Heping, ZHANG Ru, ZHANG Zetian, et al. Reflections and explorations on deep earth science and deep earth engineering technology[J]. Journal of China Coal Society, 2023, 48(11): 3959-3978. (in Chinese)
    [2]
    何满潮, 谢和平, 彭苏萍, 等. 深部开采岩体力学研究[J]. 岩石力学与工程学报, 2005, 24(16): 2803-2813.

    HE Manchao, XIE Heping, PENG Suping, et al. Study on rock mechanics in deep mining engineering[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24(16): 2803-2813. (in Chinese)
    [3]
    陈兴周, 白亚妮, 陈莉丽, 等. 高渗压与循环加卸载环境下开挖卸荷岩体力学特性试验研究[J]. 岩土工程学报, 2024, 46(4): 737-745. doi: 10.11779/CJGE20221470

    CHEN Xingzhou, BAI Yani, CHEN Lili, et al. Experimental study on mechanical properties of excavated unloading rock mass under high osmotic pressure and cyclic loading and unloading environments[J]. Chinese Journal of Geotechnical Engineering, 2024, 46(4): 737-745. (in Chinese) doi: 10.11779/CJGE20221470
    [4]
    陈旭, 肖义, 汤明高, 等. 多级等幅循环荷载作用下砂岩变形、渗透及声发射特征试验研究[J]. 岩石力学与工程学报, 2024, 43(8): 1923-1935.

    CHEN Xu, XIAO Yi, TANG Minggao, et al. Experimental study on deformation, permeability and AE characteristics of sandstone under multi-stage cyclic loading with a constant amplitude[J]. Chinese Journal of Rock Mechanics and Engineering, 2024, 43(8): 1923-1935. (in Chinese)
    [5]
    WANG J B, ZHANG Q, SONG Z P, et al. Microstructural variations and damage evolvement of salt rock under cyclic loading[J]. International Journal of Rock Mechanics and Mining Sciences, 2022, 152: 105078. doi: 10.1016/j.ijrmms.2022.105078
    [6]
    NING Z X, XUE Y G, LI Z Q, et al. Damage characteristics of granite under hydraulic and cyclic loading-unloading coupling condition[J]. Rock Mechanics and Rock Engineering, 2022, 55(3): 1393-1410. doi: 10.1007/s00603-021-02698-3
    [7]
    WANG W, DUAN X L, JIA Y, et al. Deformation characteristics, gas permeability and energy evolution of low-permeability sandstone under cyclic loading and unloading path[J]. Bulletin of Engineering Geology and the Environment, 2022, 81(9): 369. doi: 10.1007/s10064-022-02858-x
    [8]
    张培森, 许大强, 颜伟, 等. 应力-渗流耦合作用下不同卸荷路径对砂岩损伤特性及能量演化规律的影响研究[J]. 岩土力学, 2024, 45(2): 325-339.

    ZHANG Peisen, XU Daqiang, YAN Wei, et al. Influence of unloading paths on sandstone damage characteristics and energy evolution law under stress-seepage coupling[J]. Rock and Soil Mechanics, 2024, 45(2): 325-339. (in Chinese)
    [9]
    李克钢, 杨宝威, 秦庆词. 基于核磁共振技术的白云岩卸荷损伤与渗透特性试验研究[J]. 岩石力学与工程学报, 2019, 38(增刊2): 3493-3502.

    LI Kegang, YANG Baowei, QIN Qingci. Experimental study on unloading damage and permeability of dolomite based on nuclear magnetic resonance technique[J]. Chinese Journal of Rock Mechanics and Engineering, 2019, 38(S2): 3493-3502. (in Chinese)
    [10]
    YANG Y R, LI W P, WANG Q Q, et al. Experimental study on mechanical behavior and permeability evolution of weakly cemented sandstone under unloading conditions[J]. Bulletin of Engineering Geology and the Environment, 2024, 83(4): 115. doi: 10.1007/s10064-024-03621-0
    [11]
    CHEN Z Q, MA C C, LI T B, et al. Experimental investigation of the failure mechanism of deep granite under high seepage water pressure and strong unloading effect[J]. Acta Geotechnica, 2022, 17(11): 5009-5030. doi: 10.1007/s11440-022-01665-8
    [12]
    XIAO F, JIANG D Y, WU F, et al. Effects of prior cyclic loading damage on failure characteristics of sandstone under true-triaxial unloading conditions[J]. International Journal of Rock Mechanics and Mining Sciences, 2020, 132: 104379. doi: 10.1016/j.ijrmms.2020.104379
    [13]
    侯志强, 王宇, 刘冬桥, 等. 三轴疲劳-卸围压条件下大理岩力学特性试验研究[J]. 岩土力学, 2020, 41(5): 1510-1520.

    HOU Zhiqiang, WANG Yu, LIU Dongqiao, et al. Experimental study of mechanical properties of marble under triaxial unloading confining pressure after fatigue loading[J]. Rock and Soil Mechanics, 2020, 41(5): 1510-1520. (in Chinese)
    [14]
    FAIRHURST C E, HUDSON J A. Draft ISRM suggested method for the complete stress-strain curve for intact rock in uniaxial compression[J]. International Journal of Rock Mechanics and Mining Sciences, 1999, 36(3): 281-289. http://geomecanica.org/didacticMat/resistenciaMec/isrmNormTranslation.pdf
    [15]
    刘新荣, 刘俊, 李栋梁, 等. 不同初始卸荷水平对深埋砂岩力学特性影响规律试验研究[J]. 岩土力学, 2017, 38(11): 3081-3088.

    LIU Xinrong, LIU Jun, LI Dongliang, et al. Experimental research on the effect of different initial unloading levels on mechanical properties of deep-buried sandstone[J]. Rock and Soil Mechanics, 2017, 38(11): 3081-3088. (in Chinese)
    [16]
    邱士利, 冯夏庭, 张传庆, 等. 不同初始损伤和卸荷路径下深埋大理岩卸荷力学特性试验研究[J]. 岩石力学与工程学报, 2012, 31(8): 1686-1697.

    QIU Shili, FENG Xiating, ZHANG Chuanqing, et al. Experimental research on mechanical properties of deep marble under different initial damage levels and unloading paths[J]. Chinese Journal of Rock Mechanics and Engineering, 2012, 31(8): 1686-1697. (in Chinese)
    [17]
    KAWAMOTO T, ICHIKAWA Y, KYOYA T. Deformation and fracturing behaviour of discontinuous rock mass and damage mechanics theory[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 1988, 12(1): 1-30. doi: 10.1002/nag.1610120102
