史金权, 肖杨, 刘汉龙, WimHaegeman. 钙质砂小应变初始剪切模量试验研究[J]. 岩土工程学报, 2022, 44(2): 324-333. DOI: 10.11779/CJGE202202014
引用本文: 史金权, 肖杨, 刘汉龙, WimHaegeman. 钙质砂小应变初始剪切模量试验研究[J]. 岩土工程学报, 2022, 44(2): 324-333. DOI: 10.11779/CJGE202202014
SHI Jin-quan, XIAO Yang, LIU Han-long, Wim Haegeman. Experimental study on small-strain shear modulus of calcareous sand[J]. Chinese Journal of Geotechnical Engineering, 2022, 44(2): 324-333. DOI: 10.11779/CJGE202202014
Citation: SHI Jin-quan, XIAO Yang, LIU Han-long, Wim Haegeman. Experimental study on small-strain shear modulus of calcareous sand[J]. Chinese Journal of Geotechnical Engineering, 2022, 44(2): 324-333. DOI: 10.11779/CJGE202202014

钙质砂小应变初始剪切模量试验研究

Experimental study on small-strain shear modulus of calcareous sand

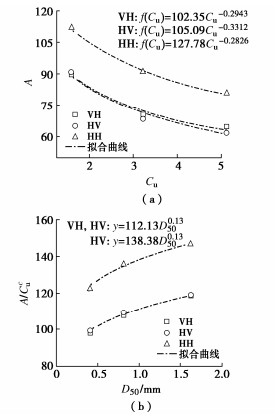

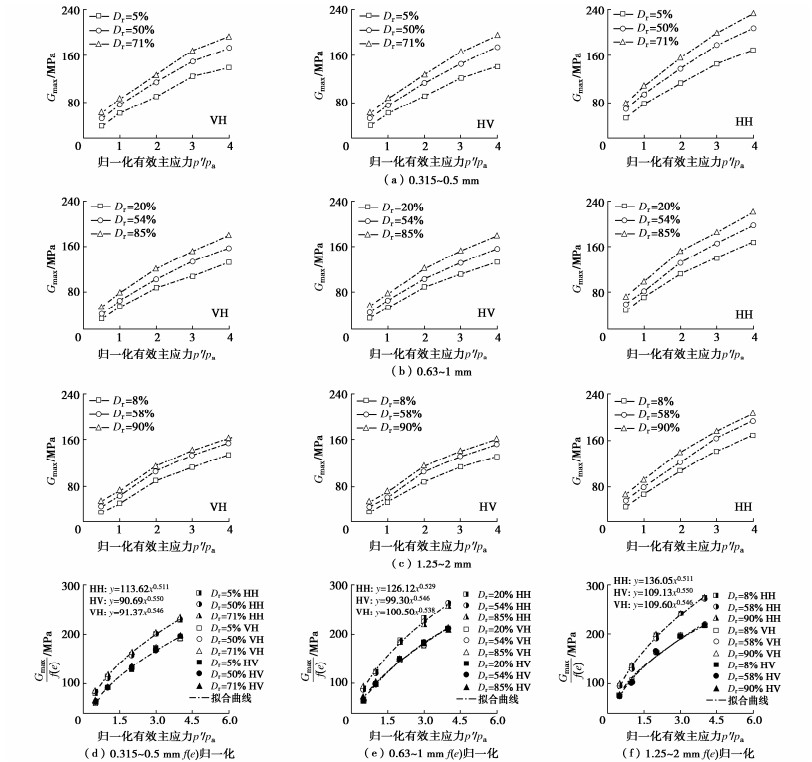

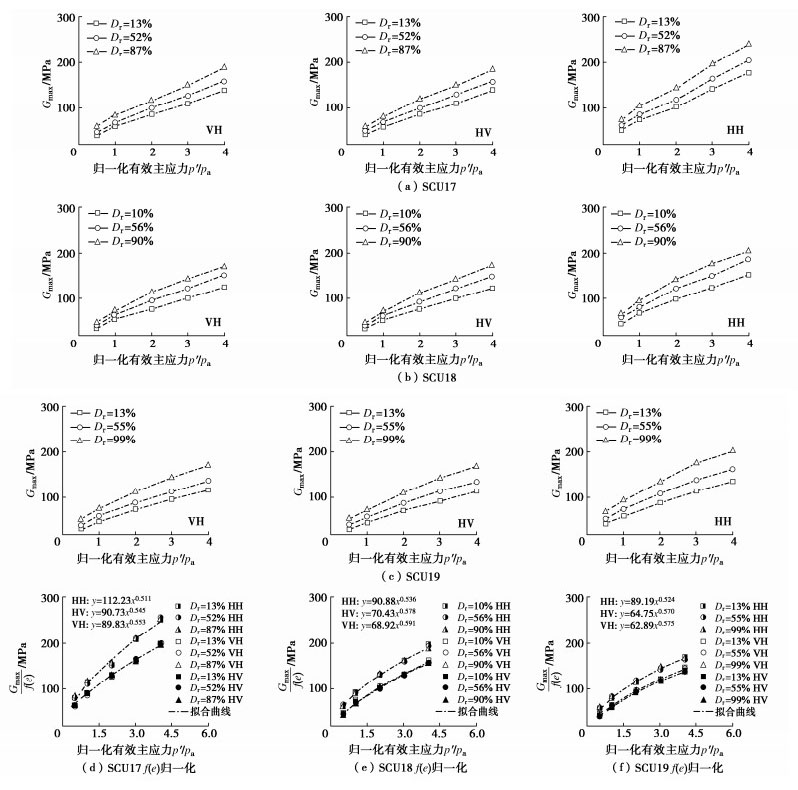

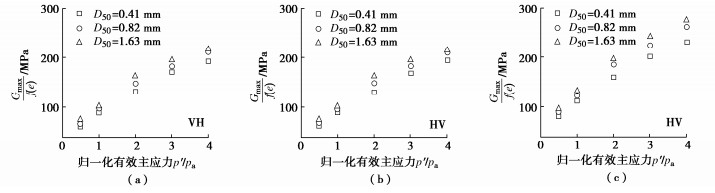

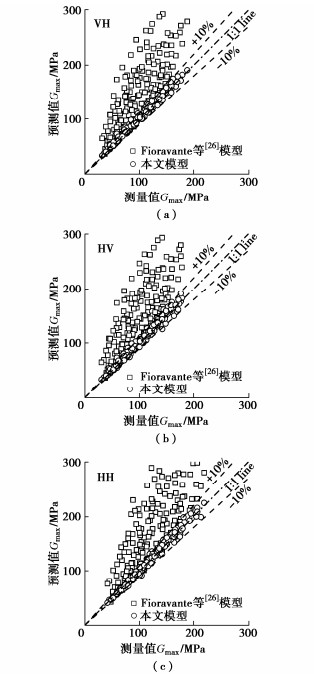

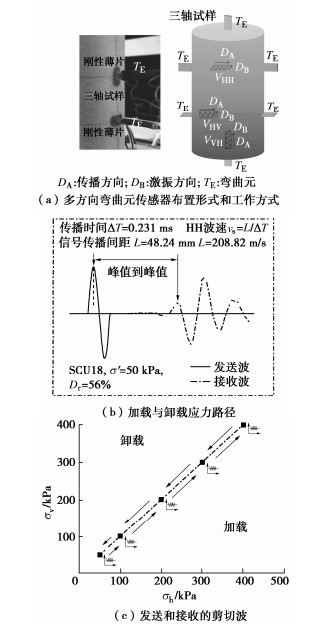

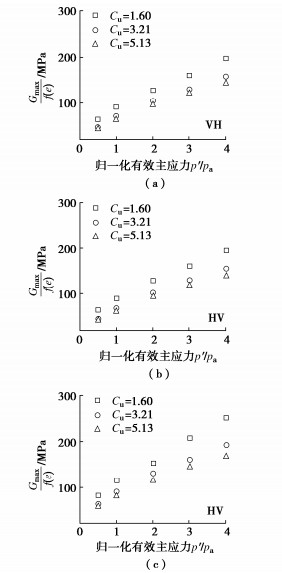

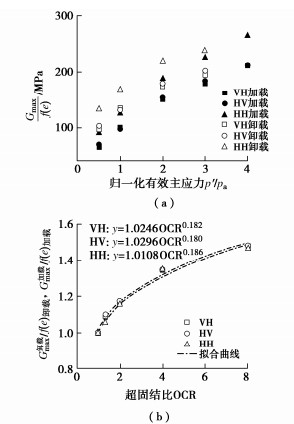

  • 摘要: 砂土的初始剪切模量 G_\max 是反映土体刚度的一个重要的力学参数。利用多方向的弯曲元测试技术,对取自波斯湾人工岛礁的钙质砂小应变初始剪切模量进行研究,分析了不均匀系数Cu、平均粒径D50及应力历史对钙质砂水平(GHH)和垂直平面(GHVGVH)上剪切模量的影响。结果表明:各向同性固结下,钙质砂的Gmax各向异性显著,表现为GHH值大于GHVGVH; G_\max 随着平均粒径D50增大而增加,但随着不均匀系数Cu增大而降低;卸载阶段的 G_\max 高于加载阶段的 G_\max 值;将不均匀系数Cu、平均粒径D50和超固结比OCR作为变量对预测砂土 G_\max 的Hardin公式进行修正,相较于传统Hardin公式,修正后的公式能够更好地预测本文中使用钙质砂的 G_\max 。



    Abstract: The small-strain shear modulus is an important parameter indicating soil stiffness in geotechnical engineering. In this study, the multidirectional bender element technique is used to investigate the small-strain shear modulus of calcareous sand from Persian Gulf. The effects of the coefficient of gradation, mean particle size and stress history on GHH, GHV and GVH on both vertical and horizontal planes are considered. The test results show that for the calcareous sand used in this study, the stiffness anisotropy is significant, behaving as the higher GHH than GHV and GVH. G_\max increases with the increase of D50 and decreases with the increase of Cu. The values of G_\max at the loading stage are apparently higher than those at the unloading stage. Finally, the Hardin equation for predicting the small-strain shear modulus is modified with the participation of D50, Cu and OCR, and a better prediction capability is obtained by comparing the traditional Hardin equation.



/
